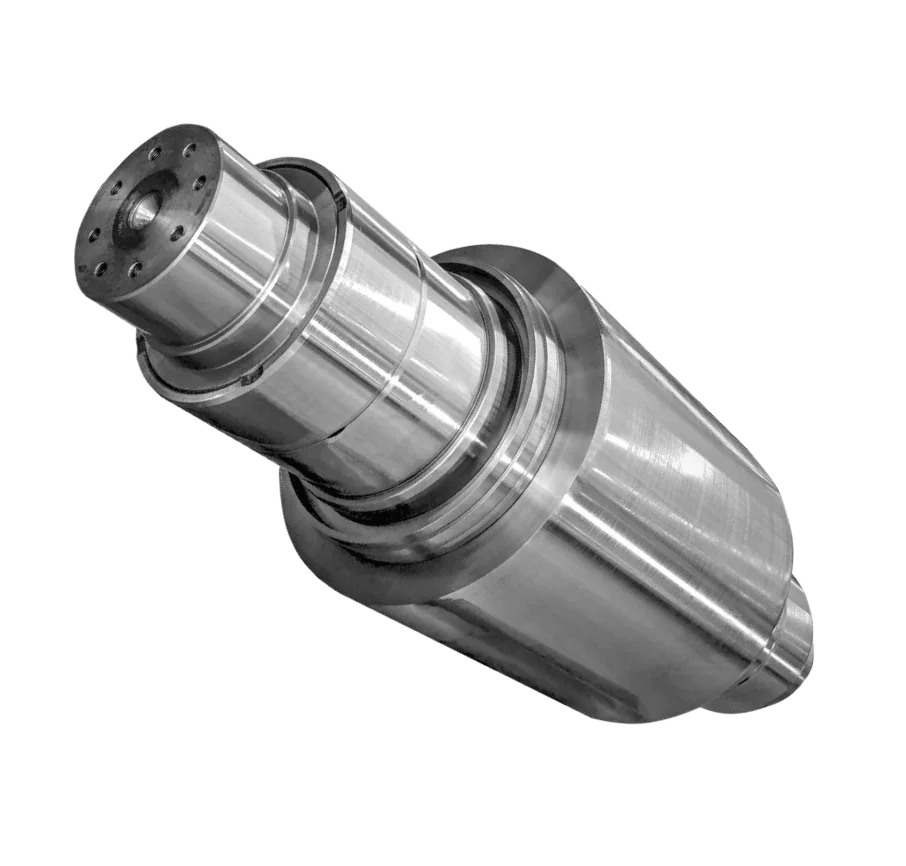

Rolls for Rolling Mills

Hot Strip Mill,Bar & Wire Mill, Section Mills, Pipe & Seamless Steel Tube Mill & Cold Rolling Mill

Roll Type

Work Roll, Backup Roll, Straightening Roll, Equalizing Roll, Intermediate Roll

Cast Rolls

MATERIALS:
SG Iron, Nodular Cast Iron,Definite Chilled, Indefinite Chilled, Clear Chilled, Non continuous Carbide, Enhanced ICDP, Hi-Cr Iron, Hi-Cr Steel, Alloy Steel, Adamite, High Speed Steel, K-Metal & Tungsten Carbide

Hardness: 35 ~ 90 Shore C (depends on material & application)

Hardness Depth: 05 ~ 30mm

Casting Method: Static Cast & Centrifugally Cast, Double Poured

Maximum Capability: Dia 1400mm, weight 29 Tons.

Origin: China, Turkey, Ukraine & Europe

Note: Customized materials and solution are also possible.



Forged Rolls

MATERIALS:
2Cr, Cr3, Cr5, Semi HSS with Hi Cr, High Alloyed cast Steel

Hardness: 85 ~ 102 HSD

Hardness Depth: 8 ~ 50mm

Maximum Capability: Dia 1800mm, Weight 80 Tons.

Origin: China, Turkey, Ukraine & Europe

Note: Customized materials and solution also possible.
